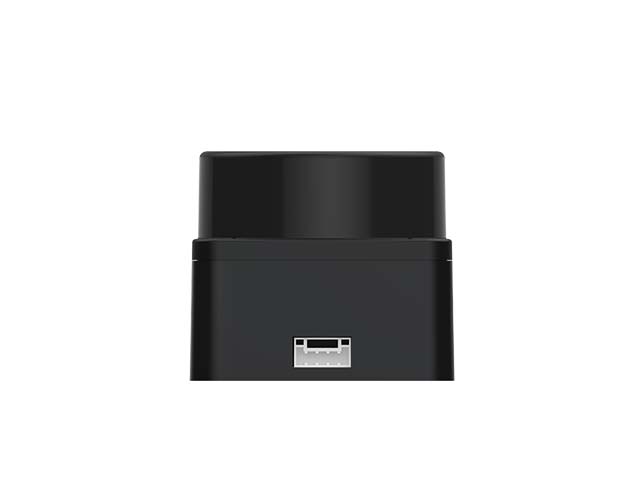

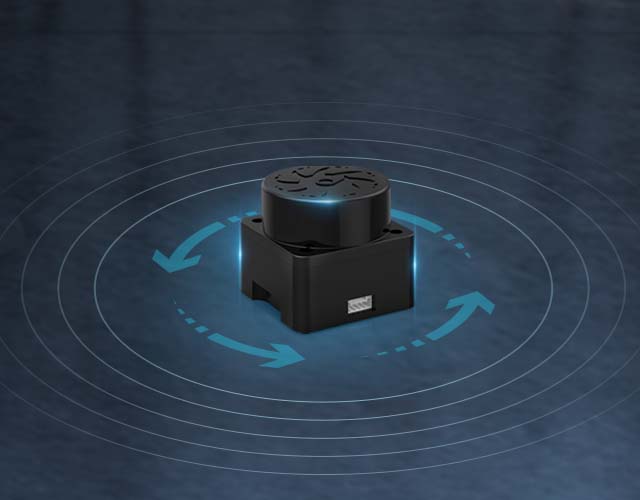

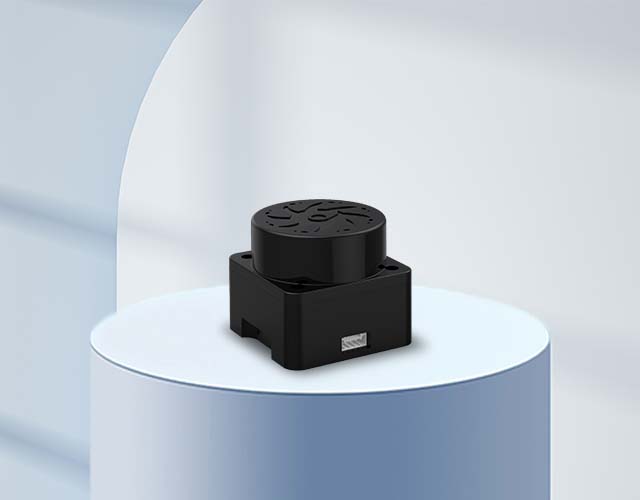

YDLIDAR T-mini Plus

  • Range Frequency 4000Hz
  • Scan Frequency 6-12Hz
  • Range Distance 0.05-12m@80%
  • Scan Angle 360°
  • Angle Resolution 0.54°
  • Size 38.6*38.6*33.9mm
Product Datasheet Download

Product Introduction

  • Dual core technology, product performance surpasses conventional

    T-mini Plus adopts mature ToF detection principles, while the new temperature compensation algorithm can make the device perform well in different temperature environments, bringing stable and high-precision 360 degrees two-dimensional environment precise

  • Accurate ranging with 12m ranging distance, easily capable of long-distance detection

    The ranging radius of T-mini Plus can reach 12m, with a ranging blind spot as low as 0.05m and a full range accuracy of ± 20mm.

  • Small size, easy to integrate

    Delicate appearance of 38.6 * 38.6 * 33.9mm, universal external communication interface UART, compatible with upper computer and terminal devices, suitable for more scenarios.

  • Strong resistance to environmental interference, suitable for outdoor use

    T-mini Plus has 60kLux anti environmental interference capability, which can achieve high-frequency and high-precision distance measurement and precise mapping both indoors and outdoors.

  • Supporting multiple platforms for quick learning

    T-mini Plus provides SDKs for different platforms such as Windows and Linux, supports Ros and ROS2 systems, and rich technical documentation, making it easy to get started and convenient for customers to use.

  • FDA Class I Safety Standards

    The infrared point pulse laser used in T-mini Plus can ensure the safety of human and pet. The lidar has passed testing and conformed to Class I IEC60825-1.
